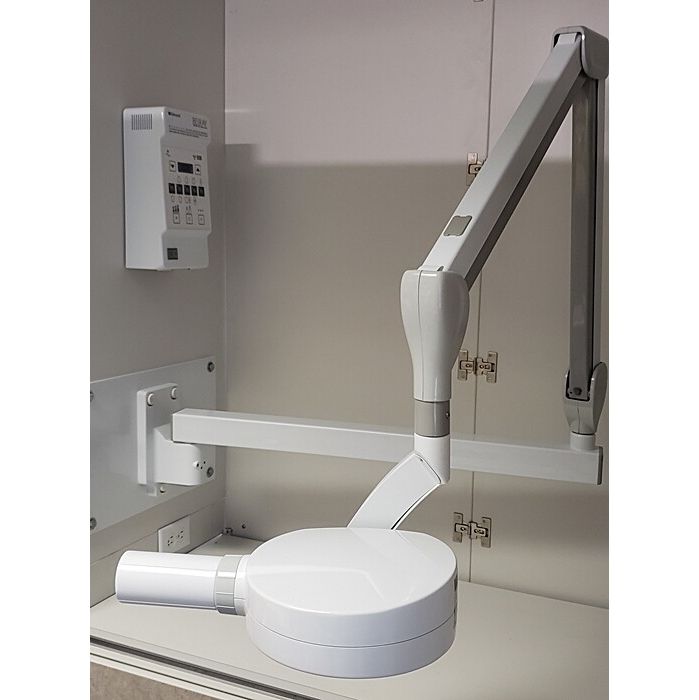

Belmont 096 Belray Intra-Oral X-Ray System
34" Horizontal Arm Length
TECHNICAL DATA - ELECTRICAL AND RADIATION DATA
1. Focal point measurement: 0.8 mm x 0.8 mm
2. Rated peak tube potential: 70 kVp
3. Rated tube current: 10 mA
4. Maximum rated peak tube potential: 70 kVp
5. Rated line voltage: 120 V AC
6. Line voltage range: 108 V AC ~ 132 V AC
7. Range of line voltage regulation: 2 ~ 5 %
8. Rated line current: 10.8 A at 70 kVp, 10 mA
9. Maximum line current: 11.9 A at 70 kVp, 10 mA
10. Exposure time: 0.02 ~ 3 sec. (ON and OFF are zero crossed.)
11. Timer accuracy: ± 1 pulse (1/60 sec.)
12. Inherent filtration: 1.3 mmAl Equivalent
13. Added filtration: 0.8 mmAl
14. Minimum filtration permanently in useful beam: 2.1 mmAl Equiv. at 70 kVp
15a. Nominal roentgen output a. Distal end of regular cone: 8.2 mGy/sec. + 30 %, - 40 %
15b. Distal end of long cone: 3.7 mGy/sec. + 30 %, - 40 %
16a. Source to skin distance a. Regular cone: 204 mm
16b. Long cone: 305 mm
17. Leakage technique factor: 70 kVp / 0.16 mA 0.16 mA
(Maximum rated continuous current for 10 mA with a duty cycle 1: 60)
18. Duty cycle: 1: 60 (0.5 sec. exposure with 30 sec. interval)
Restored to excellent cosmetic and working condition. Certified by Dental Technician to operate at factory specifications.
Installation Guide ------- Operating Guide ------- Service Manual
Pre-Installation Information ------ Control Wiring Diagram
Mounting Template Wall Plate ------ Mounting Template Pass Through
