Planmeca ProX - Dental Intraoral X-Ray System *Refurbished

1 Year Parts / 90 Days Labor Warranty

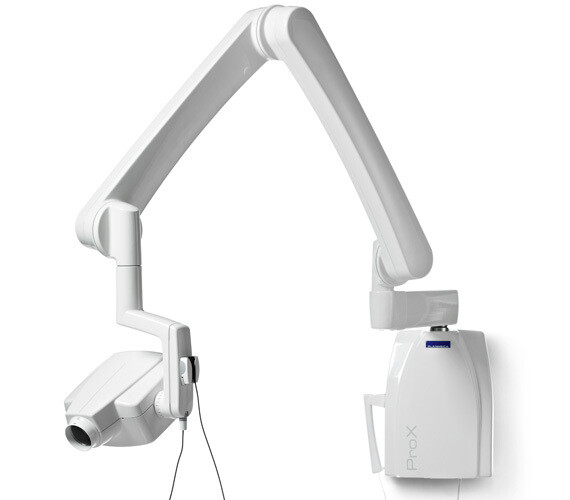

**** Stock image used for display purposes only. Sensor pictured is not included in the price. We can not offer the sensor as well.

Technical data

• Generator Constant potential, microprocessor controlled, operating frequency 66 kHz
• X-ray tube Toshiba D-041SB
• Focal spot size 0.4 mm according to IEC 60336
• Cone diameter 60 mm (2.36 in.), Rectangular 33 x 43 mm (1.30 x 1.69 in.)
• Max. symmetrical radiation field Ø60 mm at SSD 200 mm, Ø60 mm at SSD 300 mm, according to IEC 806
• Total filtration min. 2.5 mm Al equivalent at 70 kV according to IEC 60522
• Inherent filtration 1 mm Al equivalent at 70 kV according to IEC 60522
• Anode voltage 60, 63, 66, 70 kV, ±2 kV
• Anode current 8, 7, 6, 5, 4, 3, 2 mA ±(5% + 0.2 mA)
• Exposure times 0.01–2 sec. ±(5% + 0.001 sec.), 24 steps
• SSD (Source-Skin Distance) Standard/Long 200 mm (8 in.)/300 mm (12 in.)
• Mains voltage 100 V~/110-115 V~/220-240 V~, 50/60 Hz
• Duty cycle 1:30, automatic control
• Electrical classification Class I Type B
• Weight total 29 kg (64 lbs), tube head with standard cone 4.2 kg (9.3 lbs), tube head with long cone 4.5 kg (10 lbs)
• Color White (RAL 9016)
