Sirona Heliodent DS Dental Intraoral X-Ray System (Model D3302) *Certified Used Condition - 6 Month Parts / 90 Days Labor Warranty
Item is in very good used cosmetic condition, very few light scratches or blemishes, and is tested / certified by a dental technician to operate at factory specifications.
Price does not include delivery, shipping, or installation. Call for available options.

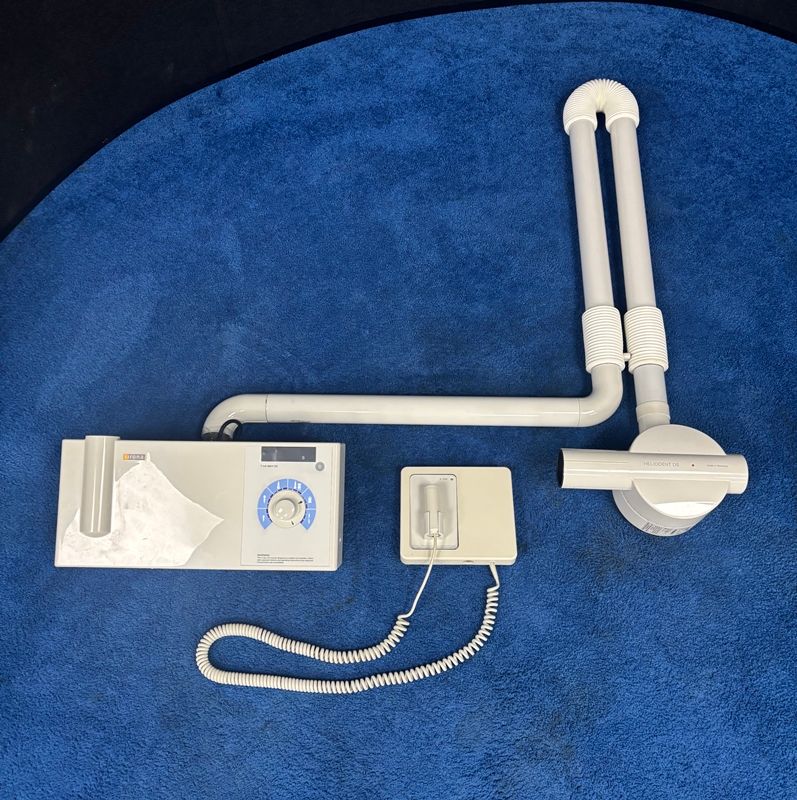

Includes:
- Dental imaging system - Mfg. 2010
- Wall mounted controller box - Mfg. 2003
- External wall mounted remote switch
- The Heliodent DS is used to capture standard bitewings, FMX series and other intraoral radiographs.
-- Exposure settings for child and adult
-- Automatic duty cycle observance
-- Central x-ray beam indicator
-- Control knob with clear patient and tooth icons and digital display for exposure time
-- Easy operation
-- Brilliant image quality
-- Easy-to-read icons and digital display
Technical Data
Nominal voltage: Permissible line voltage fluctuations: 200 – 230V or 127V + 6% –10% (200 – 230V), ± 10% (127V)
Nominal current: at 230V: 4.6A at 127V: 11A
Rated line frequency: 50Hz / 60Hz
Line impedance: at 230V: 0.8 Ohm at 127V: 0.3 Ohm
House wiring fuse: 16A
Power requirement: < 1.5kW
Tube voltage: 60kV
Tube current: 7mA
High-voltage curve: Multipulse X-ray tube
Radiation times: 0.01 – 3.s
Mark-to-space ratio: 1:30 (radiation-time-dependent overheating protection)
Total filtration in X-ray tube unit: > 2mm Al / 70 kV IEC 60 522
Focal spot size acc. to IEC 336: Petrick P470/6.30/12G 0.4mm
Focal spot mark: SSD 8” (203mm) or 12” (305mm) = source-skin distance
Diameter of radiation field at tube end: < 60 mm
Type of protection against electric shock: Protection class I
Degree of protection against electric shock: Type B
Degree of protection against penetration of water: Conventional unit (w/o protection against penetration of water)
Operating mode: Continuous operation
Continuous power rating: 30W max
Rating (60kV, 7mA) 420W max
Anode material: Tungsten
Exposure data to determine leakage radiation: 0.25mA/60kV
Leakage radiation < 0.25 mGy/h
Filament Nominal line voltage: 6,6V
Nominal current: 1,6A
Nominal frequency: DC Duty cycle: 1:30
Operating conditions (compliant with IEC 601-1) Ambient temperature: 10°C – 40°C (50°F – 104°F) Relative humidity: 30% – 75%
Transport and storage conditions (compliant with IEC 601-1) Temperature: -40°C – +70°C (-40°F – 158°F) Relative humidity: 10% – 95%
